Introduction
Shadings play a crucial role in controlling heat transfer through openings, reducing energy consumption, and optimizing natural lighting in buildings. Proper architectural design of these elements can enhance thermal comfort and reduce energy costs. In this article, we examine the importance of shading, its types, and optimization strategies.
1- The Impact of Shading on Energy Consumption Reduction

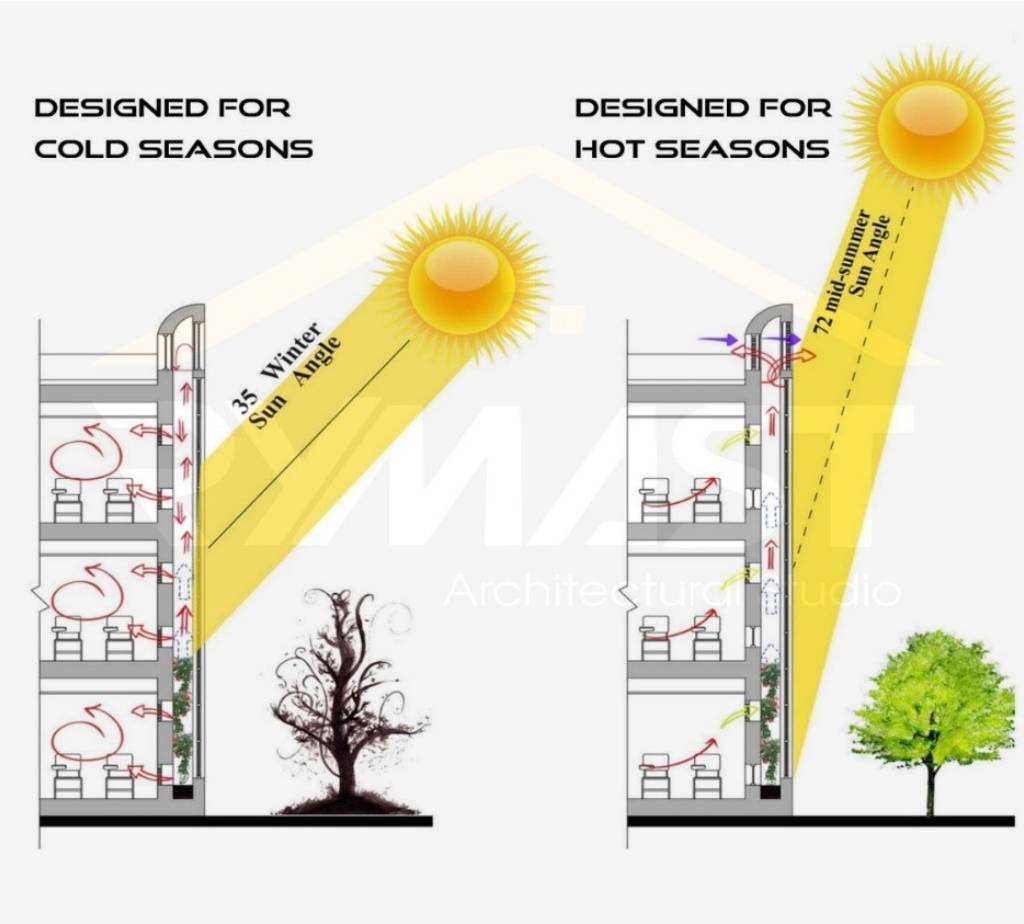

Shading systems can prevent excessive heat gain in summer while allowing sunlight penetration in winter, utilizing natural energy for heating. Choosing the appropriate direction and size of shading elements based on climatic conditions significantly impacts the thermal performance of buildings.
2- Types of Shading Systems
۲.۱. Interior Shading Systems:
Interior shading includes curtains, blinds, and smart glass. These systems help control light intensity but are less effective in reducing heat gain.
۲.۲. Exterior Shading Systems:
Exterior shading includes balconies, fixed and movable louvers, and vegetative covers. These systems prevent direct sunlight from increasing indoor temperatures, enhancing overall energy efficiency.
In the northern side(Northern Hemisphere) and southern(Southern Hemisphere), Shading is generally not required at the north side. Only cutting the low evening summer sun can be achieved by vertical shades or internal blinds.
Interior shading systems are significantly less effective compared to exterior shading ones.
3- Strategies for Optimizing Shading Systems
3.1. Using Appropriate Shading Based on Building Orientation
- South-facing façades: In cold climates, horizontal shading devices allow more sunlight in winter, reducing energy consumption
- North-facing façades: In many regions, shading is generally unnecessary.
- East and West-facing façades: To block strong sunlight in the morning and afternoon, vertical louvers or adjustable blinds are recommended
Selecting the appropriate shading device based on building orientation and seasonal variations.
3.2. Integrating Shading with Vegetative Covers
Planting deciduous trees around buildings can block excessive sunlight in summer while allowing sufficient light in winter when leaves fall.
3.3. Using Smart Technology
- Smart movable louvers: These adjust based on seasonal variations, optimizing solar radiation control.
Light shelves: These help reflect natural light deeper into interior spaces, reducing the need for artificial lighting.
To enhance natural light utilization. Passive design strategies such as light shelves are very useful for deeper and uniform distribution of light(most effective on the south side of the buildings. Mostly recommended in mild climates and not for tropical or desert climate).Solutions for optimizing shading and energy control
4- shading Analysis in DesignBuilder Software
DesignBuilder is a powerful tool for modeling openings and shading systems in sustainable building design. Key features include:
- Detailed analysis of materials used in openings and frames
- Modeling of fixed and movable shading systems
- Thermal behavior analysis of shading elements and their impact on energy consumption
5- Frequently Asked Questions (FAQ)
1- How do shading systems help reduce energy consumption?
By controlling the amount of incoming light and heat, shading systems reduce the need for cooling and heating systems, leading to lower energy consumption
2- What types of shading are most effective in hot climates?
In hot climates, exterior shading devices such as horizontal louvers and deep balconies are most effective in blocking direct sunlight.
3- Can vegetation enhance shading performance?
Yes, deciduous trees provide seasonal shading, blocking heat in summer while allowing sunlight in winter, thus helping regulate indoor temperature.
6- Conclusion
Proper selection and design of shading systems and openings significantly contribute to energy efficiency in buildings. Recommended strategies include:
- Using horizontal shading for south-facing façades
- Implementing vertical louvers for east and west-facing façades
- Combining shading elements with vegetative covers to improve thermal performance
- Integrating smart technologies to regulate light and heat entry
By applying these strategies, buildings can achieve lower energy consumption and improved indoor comfort.
